Overview

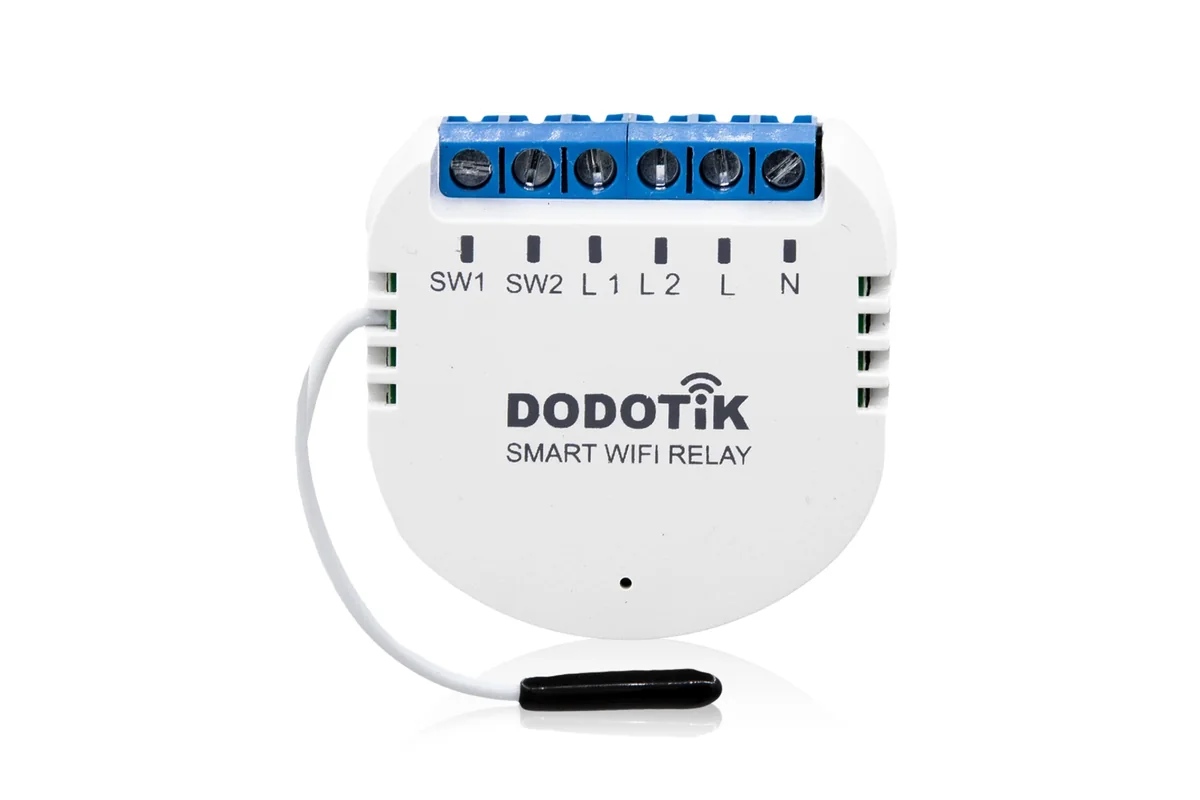

The DODO Smart WiFi Relay is a versatile switching module that brings smart control to any electrical device. Install it behind existing switches, inside distribution panels, or in junction boxes to automate lighting, motors, garage doors, and irrigation systems. Supports dry contact and potential-free relay outputs with configurable power-on state and interlock modes for multi-channel variants.
Key features
- 1 to 4 independent relay channels
- Dry contact / potential-free outputs
- App control from anywhere
- Amazon Alexa & Google Assistant compatible
- Timer, countdown & scheduling
- Configurable power-on state
- Interlock mode (multi-channel)
- DIN-rail or panel mount options
- Made in Türkiye
Technical specifications
| Parameter | Value |
|---|---|
| Model | DS-RLY4 |
| Channels | 1 / 2 / 4 relay outputs |
| Max Load | 10A per channel (resistive) |
| Input Voltage | 7-32V DC or 110-240V AC |
| Relay Type | SPDT (NO/NC/COM) |
| Connectivity | WiFi 2.4GHz (802.11 b/g/n) |
| Protocols | MQTT, HTTPS |
| App | DODOTiK App (iOS / Android) |
| Voice Control | Alexa, Google Assistant |
| Mounting | DIN-rail / screw mount |
| Certifications | CE, RoHS |
Request a quote for DODO Smart WiFi Relay
Sold direct and through distributors. Tell us the order code, the quantity and the destination country and we will come back with export pricing, volume tiers and lead time.
